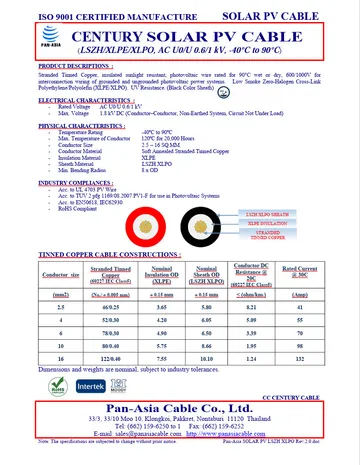

CENTURY SOLAR PV CABLE

(LSZH/XLPE/XLPQ AC UO/U 0.6/1 kV, -40*C to 90*C)

PRODUCT DESCRIPTIONS

Stranded Timned Copper, insulated sunlight resistant, photovoltaic wire rated for 90*C wet or dry, 600/1000V for interconnection wiring of grounded and ungrounded photoroltaic power systens. Low Smoke Zero-Halogen Cross-Link Polyethylene Polyolefin (XIPE/XIPO). UV Resistance. (Black Color Sheath)

ELECTRICAL CHARACTERISTICS

  • Rated Voltage AC UOU0.6/1kV

  • Max. Voltage 1.8 kV DC (Conductor-Conductor, Non-Earthed System, Circuit Not Under Load)

PHYSICAL CHARACTERISTICS

  • Temperature Rating : 40*C to 90*c

  • Max. Temperature of Conductor : 120*C for 20,000 Hours

  • Conductor Size : 2.5 - 16 SQ.MM

  • Conductor Material : Soft Annealed Stranded Tinned Copper

  • Insulation Material : XLPE

  • Sheath Material : LSZH XLPO

  • Min. Bending Radius : 8 x OD

INDUSTRY COMPLIANCES

  • Acc. to UL 4703 PV Wire

  • Acc. to TUV 2 pfg 1169/08.2007 PV1-F for use in Photovoltaic Systerns

  • Acc. to EN50618, IEC62930

  • RoHS Compliant
